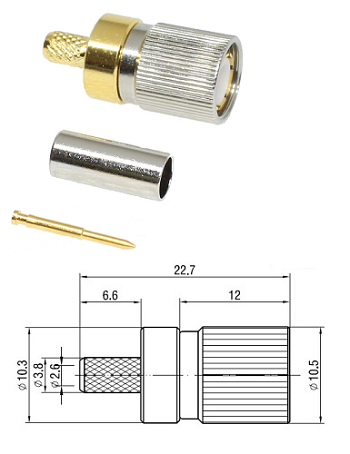

1.6/5.6 Straight Crimp Plug Flex 3 (Solder Pin)

Materials & Plating

Shell/Body - Brass Phosphor Bronze, Gold Plated

Conductor - Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Dielectric Resistant - ≥10000MΩ

Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ



Mechanical Characteristics

Mating - M9x0.5-6H

Durability - ≥500



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly:

Pin: Solder

Outer: 4.75mm hex
