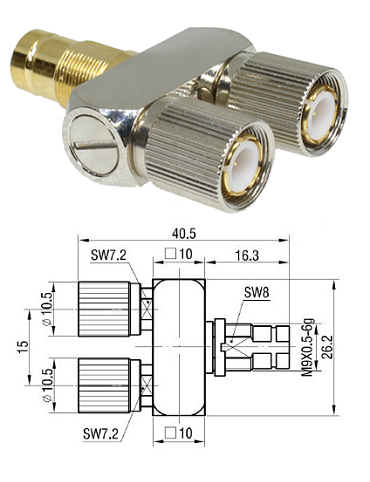

1.6/5.6 U Link (with monitor 15mm spacing)

Materials & Plating

Shell/Body - Brass, Gold, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

NUT - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 10000mΩ



Mechanical Characteristics

Mating - M9x0.5-6g

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155 °C
