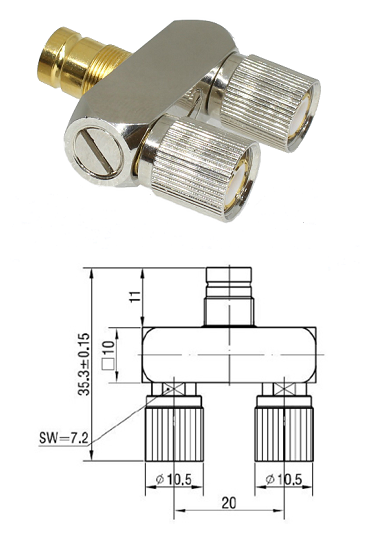

1.6/5.6 U Link (with monitor port 20mm spacing)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass Phosphor Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 10000mΩ

Mechanical Characteristics

Mating - M9x0.5-6g

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85 °C
