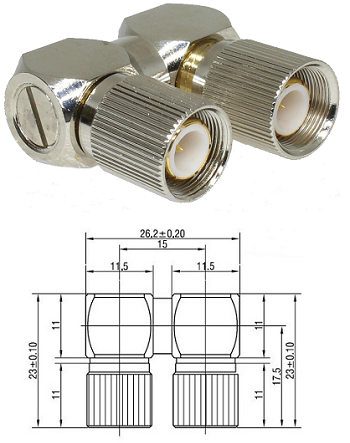

1.6/5.6 U Link (without monitor port 15mm spacing)

(Code: 206-8115-070)
 Add to Enquiry List
1.6/5.6 U Link (without monitor port 15mm spacing)

Materials & Plating

Shell/Body - Brass, Gold/Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Nut - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 1000mΩ



Mechanical Characteristics

Mating - M9X0.5-6g

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C


Alternative
Code Model
206-8115-001 F50-A81-9001A90
