2-Way Power Splitter (698-4000MHz, 300W, N-F, -150dBC, IP65

(Code: MPS-740-02-NF)
 Add to Enquiry List
2-Way Power Splitter (698-4000MHz, 300W, N-F, -150dBC, IP65
Features
■ Wide Frequency Band 698-4000MHz
■ Tetra/2G/3G/4G/LTE/5G Coverage
■ Low Passive Intermodulation
■ Low VSWR & Insertion Loss
■ Indoor Outdoor Application IP65
■ Widely use for In-building Solution
Technical Specification
 Frequency (MHz)  698-4000
 Input Port Number  1
 Output Port Number  2
 Split Loss (dB)  3.0
 Insertion Loss (dB)  ≦0.2
 VSWR

 ≦1.20
 Pim3(dBc@2*43dBm)  ≦-150@2x43dBm
 Total Input Power (W)  300
 Impedance  50 ohm
 Connector  N-female
 Colour  Black
 Temp (deg)  30ºC~+65
 Application  Indoor or Outdoor, IP65
 Relative Humidity  5%-95%
 Net Weight (kg)  0.40

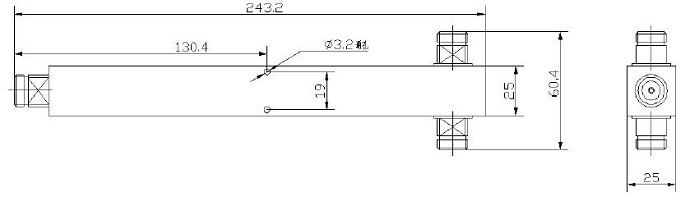

Drawing
