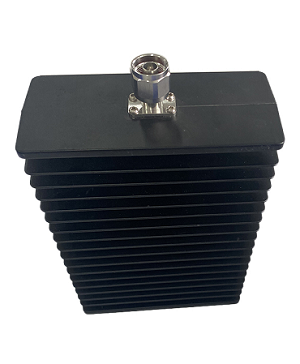

200W RF Load (DC-3GHz, N-Male)

(Code: MTL-200-3G-NM)
 Add to Enquiry List
200W RF Load (DC-3GHz, N-Male)

Features
• Wide Frequency Band DC-3GHz
•  2G/3G/4G/LTE Coverage
• Low VSWR
• Widely used for In-building Solutions

 Technical & Mechanical Specifications
 Model No.  MTL-200-3G-NM
 Frequency (GHz)  DC-3GHz
 VSWR  ≤1.20
 PIM (dBc)  ≤110dBc@2*43dBc
 Average Power(W)  200
 Impedance  50 ohm
 Connector  N-male
 Color  Black
 Temp(deg)  -40~+80
 Dimensions (mm)  200*142*64 (connector included)
 Weight(kg)  1.50

Drawing
