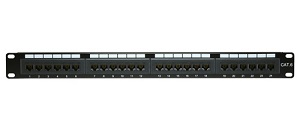

Cablenet Cat6 UTP 1u 24 port patch panels use a dual termination punch down block suitable for LSA or 110 tooling. 568B punch down blocks on rear of panel at 180 degrees to the front. Cable management rings atthe rear of the patch panel allows routing of the cables to aid airflow. Each port has a provision for individual labelling. Coloured markings on punch down blocks and rear labels for correct cable termination.
Specification
Compatible with 110 & krone punch down tools
Materials
1. Panel: SPCC 1.5 mm thickness with Black (RAL 9005) color painted
2. RJ45 Jack:
2-1. Housing: ABS, UL 94V-0
2-2. Contact Bracket: PC, UL 94V-2, Transparent colour
3. RJ45 Jack Contact
3-1. Material: Phosphor Bronze with Nickel Plated
3-2. Finish: 50 micro-inch Gold Plated on plug contact area
4. IDC
4-1. Housing: PC+ Glass Fiber, UL 94V-2
4-2. Terminal: Phosphor Bronze with Tin plated
5. Jack Bracket Set: ABS, UL 94V-0
6. Cable Holder: Nylon
7. PCB: FR4, UL 94V-0
Performance
a. T%68A & T5568B wiring
b. Insertion Force: 20N max. (IEC 60603-7-4)
c. Retention Strength: 7.7kg between Jack and Plug
d. Operating Temperature: -10ºC to 60ºC. ( ISO/IEC 11801, ANSI/TIA/EIA 568 B.2)
e. Life (mating cycles)
*Jack: 750 cycles min (ISo/IEC 11081, IEC 60603-7-4
*IDC: Suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools
f. The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568 B.2-1 standard

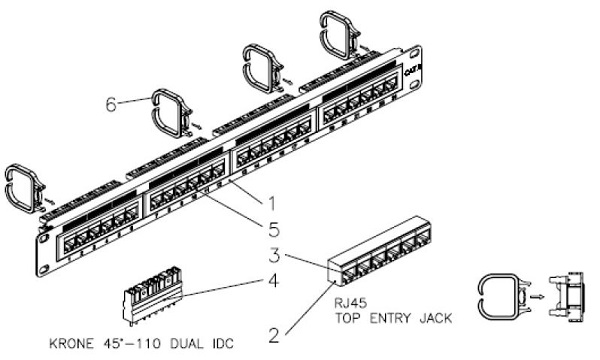

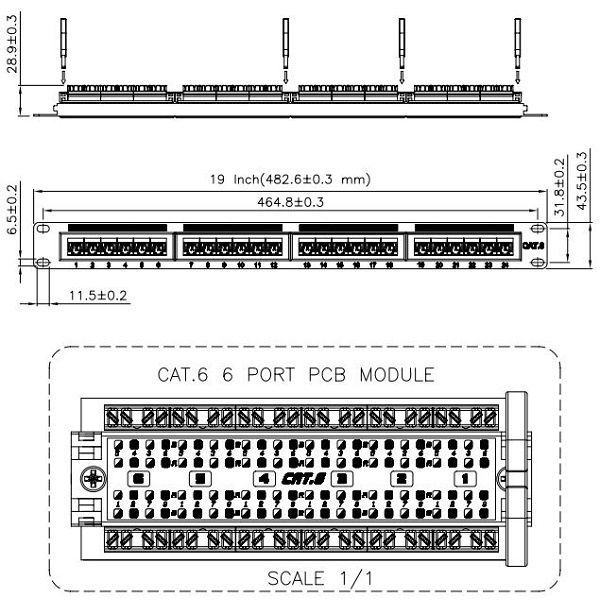

Drawing
|
