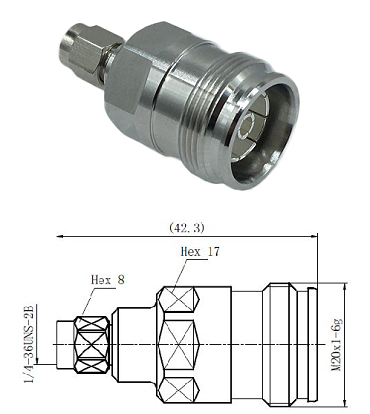

4.3/10 Female to SMA Male

Materials & Plating

Body - Brass, Tri-Alloy

Centre conductor - Tin-Phosphor Bronze, Silver Plated

Insulator - PTFE

Other - Brass, tri-Alloy

Electrical Characteristics

Characteristic Impedance- 50 ohm

Frequency Range - DC-6GHz

VSWR - ≤1.10

Dielectric Withstanding Voltage- ≥750V rms, 50Hz

Dielectric Resistance - ≥5000M Ω

Contact Resistance - Outer contact ≤2mΩ; Center Contact ≤3mΩ

Mechanical Characteristics

Durability - Mating cycles ≥ 100 cycle (4.3/10), MatingCycle ≥ 500 ​​​​Cycle (SMA)

Environmental Characteristics

Temperature Range: -40℃～+80℃
