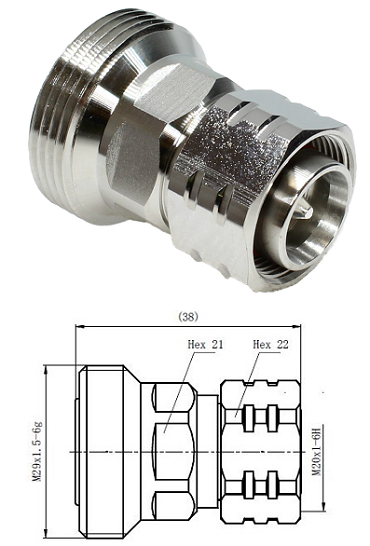

4.3/10 Male - 7/16 Female Adaptor

Materials & Plating

Shell/Body - Brass, Tri-alloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Gold Plated

Other - Brass, Tri-alloy

Electrical Characteristics

Impedance - 50 ohm

VSWR - VSWR≤1.10 @ 6GHz

PIM (@2-tonex20w) - ≤-160dBc

Insertion Loss - ≤0.05*√f

Dielectric Withstanding Voltage - ≥2500V RMS,50Hz,at sealevel

Dielectric Resistance -≥5000MΩ

Mechanical Characteristics

Durability - ≥ 100 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C

Rosh-compliance - Full ROHS compliance

Salt-fog test - 96h
