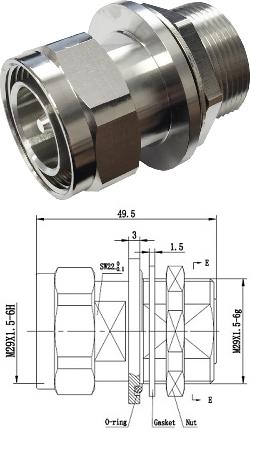

7/16 Adaptor Bulkhead M/F

Materials & Plating

Body - Brass, Tri-alloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR -  ≤ 1.15

Dielectric Withstanding Voltage - ≥ 4000 RMS, 50hz, at sea level

Dielectric Resistance - ≤ 10000 mΩ,

Mechanical Characteristics

Durability - ≥ 500  mating cycles

Environmental Characteristic

Temperature Range - 40°C to +85°C
