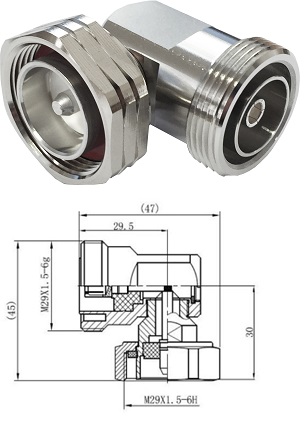

7/16 Right-Angled Adaptor M/F

Materials & Plating

Shell/Body - Brass, Tri-Alloy

Insulator - PTFE

Center conductor - Phosphor bronze, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 7.5GHz

VSWR - ≤1.30

Dielectric Withstanding Voltage -  ≥2500V RMS, 50Hz, at sea level

Dielectric Resistance - ≥500MΩ

PIM - ≤-155dBc(2*20W)

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40℃～+85℃
