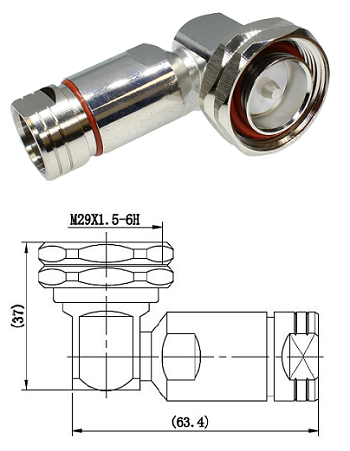

7/16 Right-Angled Plug for 1/2” Cable

Materials & Plating

Body - Brass, Try-Aloy

Insulator - PTFE

Center Conductor - Brass, Gold Plated

Other - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2.5GHz

Dielectric Withstanding Voltage - ≤4.0KV rms,50Hz

Dielectric Resistance - ≥ 1000mΩ

VSWR - ≤1.10

Contact Resistance - Centre ≤ 0.4mΩ, Outer ≤ 1.5mΩ

PIM3 - ≤-155 dBc (2X20W)

Mechanical Characteristics

Durability - Mating cycle ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
