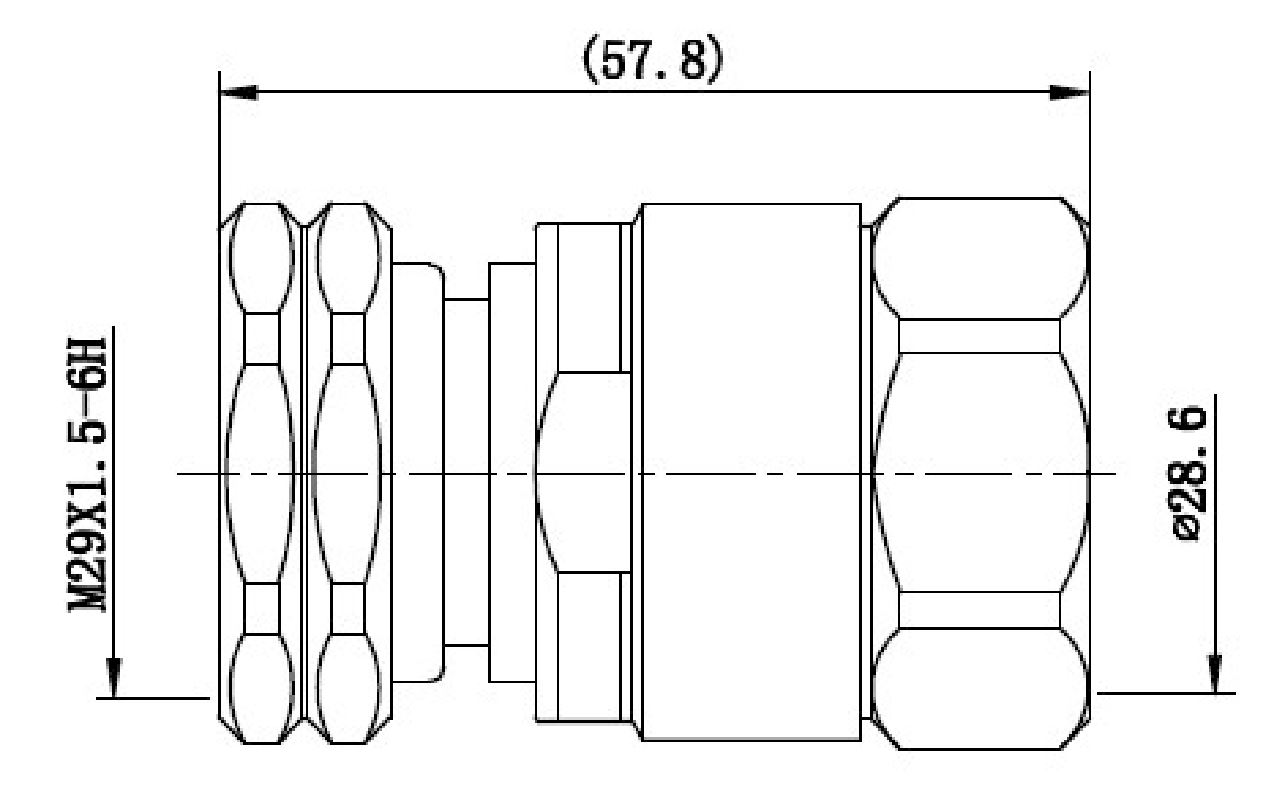

7/16 Straight Male for 7/8” Cable

(Code: 276-716M-78)
Add to Enquiry List
7/16 Straight Male for 7/8” Cable

Electrical
Characteristic Impedance  50 ohm
Freqency Range  DC-3GHz
VSWR  ≤1.10
Dielectric Withstanding Voltage  ≥40kV RMS,50Hz, sea level
Dielectric Resistance  ≥10000MΩ
Contact Resistance Center Contact  ≤0.4mΩ
Contact Resistance Outer Contact  ≤1.5mΩ
PIM3  ≤-155dBc(2*20W)
Mechanical
Durability Mating cycles
≥500
Material and Plating

Material
Plating
Body
Brass
Tri-alloy
Insulator
PTFE
-
Centre Conductor
Brass
Ag
Other
Brass
Ni
Enviromental
Temperature Range °C
-40 ~ +85
