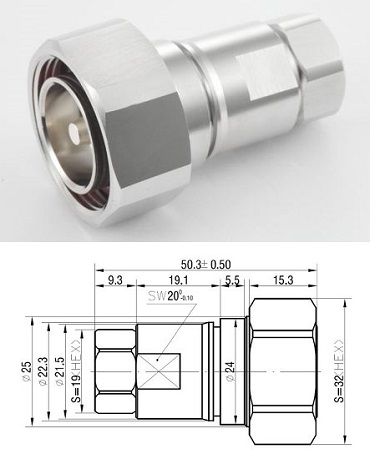

7/16 Straight Plug for 1/2" Superflex Cable

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Pin - Phosphor Bronze, Silver Plated

Insulator - PTFE

Nut - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 4000V (RMS)

Contact Resistance - Centre ≤ 10.4mΩ, Outer ≤1.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -   M29x1.5-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
