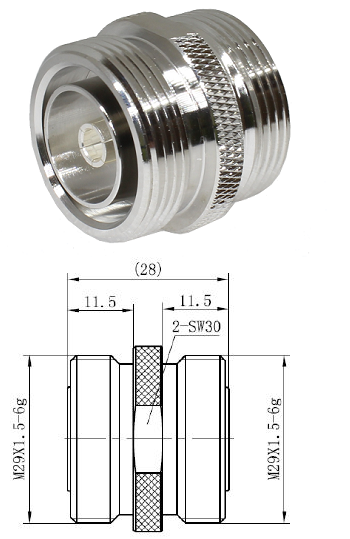

Adaptor 7/16 F/F (28mm)

Materials & Plating

Body - Brass, Try-Aloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Gold Plated

Other - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - ≤4.0KV rms,50Hz

Insulation Resistance - ≥ 1000mΩ

VSWR - ≤1.10

Contact Resistance - Centre ≤ 1.0mΩ, Outer ≤ 1.5mΩ

PIM3 - ≤-160 dBc (2X20W)

Mechanical Characteristics

Durability - Mating cycle ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
