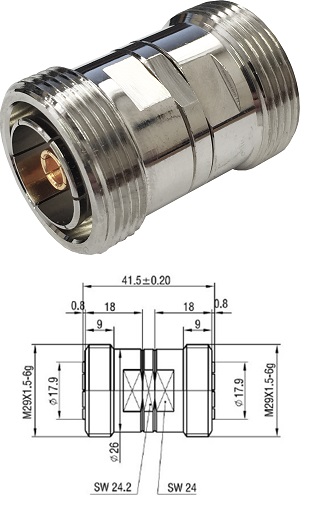

Adaptor 7/16 F/F (41.5mm)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor/Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - N: 5/8-24UNEF-2B,7/16:M29x1.5-6g

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
