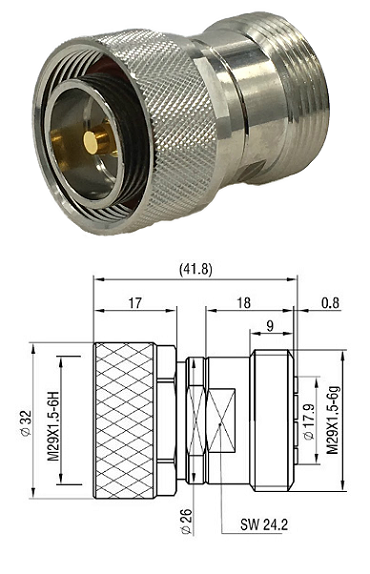

Adaptor 7/16 Male to 7/16 Female

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze/Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 4000V (RMS)

Contact Resistance - Centre ≤ 0.4mΩ, Outer ≤1.5mΩ

Insulation Resistance - ≥ 10000mΩ

Mechanical Characteristics

Mating - 7/16:M29x1.5-6g(6H)

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
