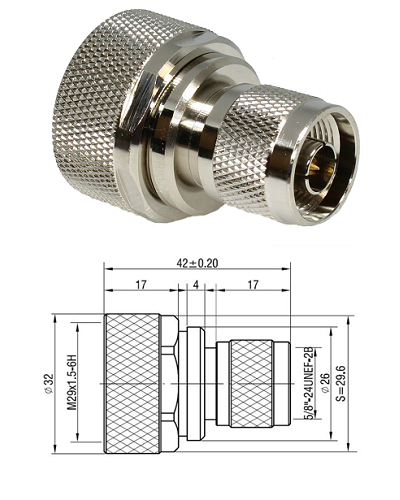

Adaptor 7/16 Male to N Male

(Code: 290-5072-070)
Add to Enquiry List
Adaptor 7/16 Male to N Male

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1.5mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR <1.2

Mechanical Characteristics

Mating - N: 5/8-24UNEF-2B, 7/16:M29x1.5-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
