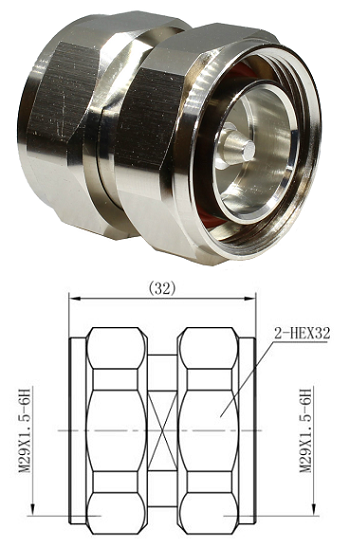

Adaptor 7/16 Plug/Plug (Hex)

Materials & Plating

Body - Brass, Try-Alloy

Center conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE

Other - Brass, Nickel Plated

Electrical Characteristics

Characteristic Impedance- 50Ω

Frequency Range Max. - DC -3GHz

VSWR - ≤1.1

PIM3 - ≤-160dBc

Dielectric Withstanding Voltage - ≤4.0kV rms, 50Hz

Dielectric Resistance - ≥10000MΩ

Contact Resistance -Outer contact≤1.5mΩ; Center Contact≤1.0mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Rosh-compliance - Full ROHS compliance

Temperature Range: --40℃～+85℃
