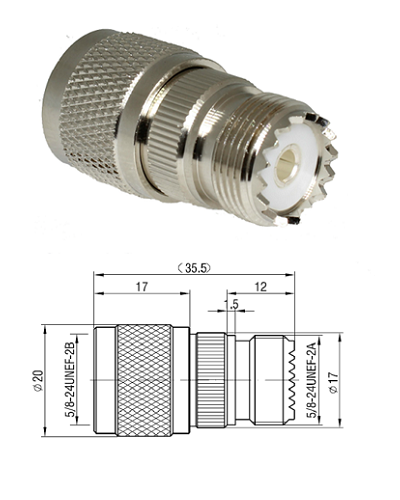

Adaptor UHF Female to N Male

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor -   Brass, Silver Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300GHz

Dielectric Withstanding Voltage - 750V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR <1.2

Mechanical Characteristics

Mating - N:5/8-24UNEF-2A 7/16:M29x1.5-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
