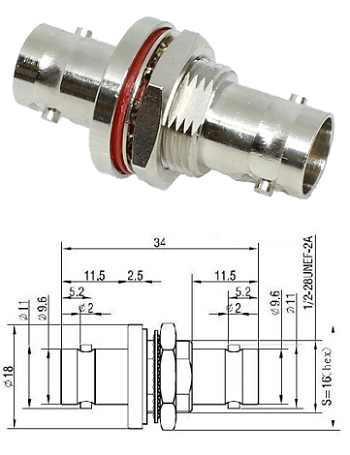

BNC Bulkhead Jack/Jack Adaptor 75 ohm

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Nut - Brass, Nickel Plated

Spring Contact - Phosphor Bronze, Nickel Plated

Gasket - Silicone Rubber

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1500V(RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
