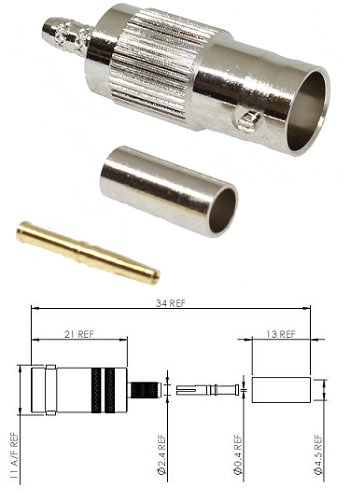

BNC Crimp Jack BT3002

Materials & Plating

Body - Brass, Nickel Plated

Centre contact - BERYLLIUM COPPER, Gold Plated

Insulator - PTFE

Crimp Sleeve - Brass Nickel Plated



Electrical Specification

Impedance - 75 ohm

Frequency Range Max. - 0 - 3GHz (Cable Limited)

Dielectric Withstanding Voltage - 15000 V eff min

Insulation Resistance - ≥ 500mΩ min



Mechanical Specification

Centre contact retention Axial Force - 10N

Cable Retention - 150N min

Mating - 100



Environmental Specification

Temperature Range: - 35°C to +70°C



Tooling

Center contact - HEX 1.46 mm A/F

Crimp Sleeve - HEX 4.52 mm A/F

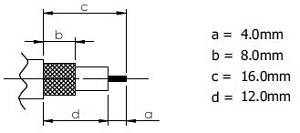

Stripping Dimensions
