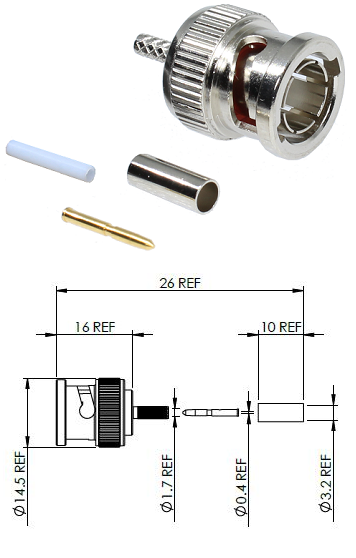

BNC Crimp Plug (Huawei Micro Coax)

Materials & Plating

Body - Brass, Nickel Plated

Centre Contact - Brass, Gold Plated

Insulator - PTFE

Crimp Sleeve - Brass, Nickel Plated

Gasket - Silicon

Coupling Nut - Zinc, Nickel Plated

Washer - BecU, Nickel Plated

Suitable for Cables

(BJ) 2.2mm Dia Mini Coax, Saturn, 3M-043, GCX0379

Stripping Dimensions

Assembly Procedure: AP001

Tooling

Centre Contact - SQ. 1.07 A/F

Crimp Sleeve - HEX 3.25 A/F

Tool No. - 336J

Electrical Specification

Impedance - 75 ohm

Frequency - 0-3GHz

Dielectric W/V - 1500Veff

Insulation Resistances - 5000 M ohm

Environmental Specification

Operating Temp - -55 to +155 C°

IP Rating (Mated) - IP64

Mechanical Specification

Contact Retention - 10 N min

Cable Retention - 60N min

Mating Cycles - 500

Weight - 8.89 g

Connector Interface
