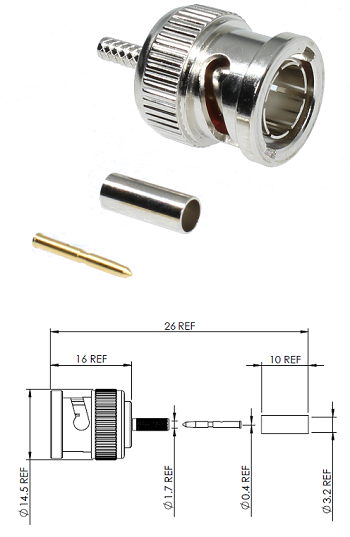

BNC Crimp Plug (Huawei Mini Coax)

Electrical Specification

Impedance: 75 Ohm

Frequency:  0 - 3 Ghz (Cable limited)

Dielectric W/V: - 1500 V eff min

Insulation res: 500 M-Ohm min

Mechanical Specification

Centre contact retention Axial Force: 10N min

Cable Retention: 60N min

Mating cycles: 100 min

Environmental Specification

Operating Temp: -35 to +70 Deg C

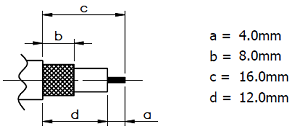

Assembly

Centre Contact: INDENT AFM8 Set. 7

Tool No: Positioner IG0077-B

Crimp Sleeve: HEX 3.25 A/F

Tool No: 336J
