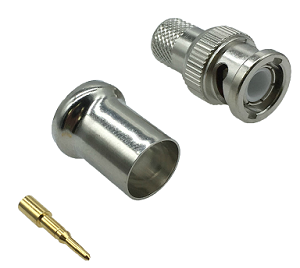

BNC Crimp Plug RG11

(Code: 210-1029-054)
 Add to Enquiry List
BNC Crimp Plug RG11

No.
 Description  Material

Finish
1 Body Brass

Nickel Plated
2  Insulator Delrin White
3  Gasket PVC Red
4  C Washer Steel

Nickel Plated
5  Spring  SK-5

Nickel Plated
6  Washer Steel  Nickel Plated
7  Shell Zinc Alloy

Nickel Plated
8  Contact Pin Brass

Gold Plated
9  Ferrule Brass

Nickel Plated

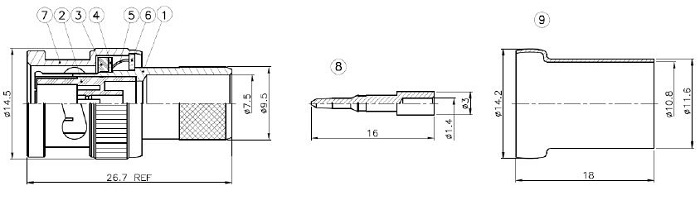

Drawing

Assembly

Pin: 2.6 mm hex

Outer: 10.30 mm hex
