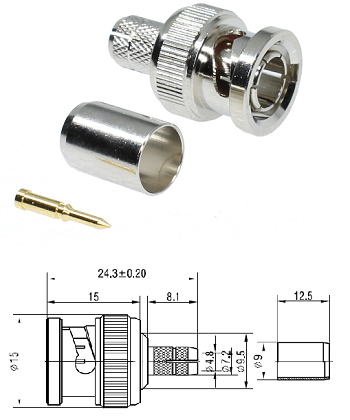

BNC Crimp Plug RG6

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE

Gasklet - Silicon Rubber

Crimp Ferrule -  Brass, Nickel Plated

Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - bayonet lock

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  55°C to +155°C

Assembly

Pin: 1.72 mm hex

Outer: 7.90 mm hex
