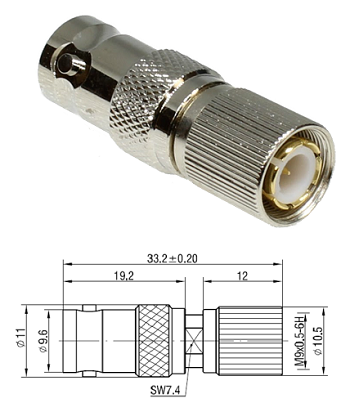

BNC Jack - 1.6/5.6 Plug

(Code: 290-5005-070)
Add to Enquiry List
BNC Jack - 1.6/5.6 Plug

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Nut - Brass, Nickel Plated

Electrical Characteristics

Impedance - 75ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 4mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - BNC: bayonet lock L9:M9X0.5-6H

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
