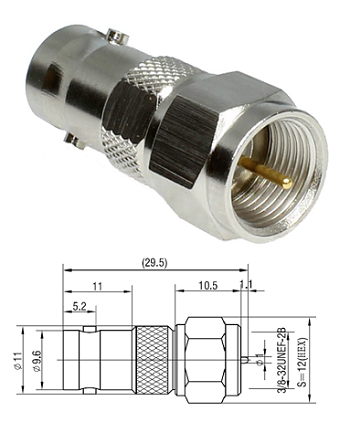

BNC Jack F Plug

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass , Gold Plated

Insulator - ABS

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage -500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating -  BNC:bayonet lock F:3/8-32UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -  40°C to +85°C
