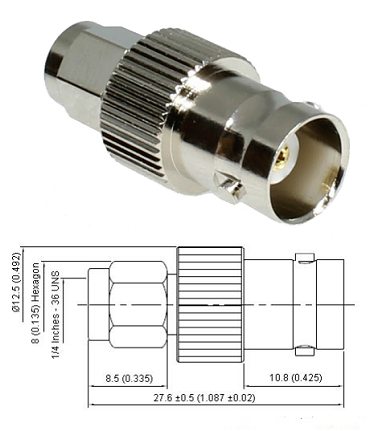

BNC Jack - SMA Plug (Nickel)

(Code: 290-5032-124)
 Add to Enquiry List
BNC Jack - SMA Plug (Nickel)

Specifications

Bodies: Brass per JIS-C3604

Centre Contact: Brass per JIS-C3604

Insulation: PTFE per ASTM D1457 and ASTM D1710

Connector interface per MIL-STD-348A

Part to be clean and free of burrs

Shell - Brass, Nickel 100 µ Inches Minimum

Gasket - Silicone, Red

Washer  - Stainless Steel

Body I -  Brass, Nickel 100 µ Inches Minimum

Body II -  Brass, Nickel 100 µ Inches Minimum

Centre Contact - Brass, Gold Plated

Insulation - PTFE
