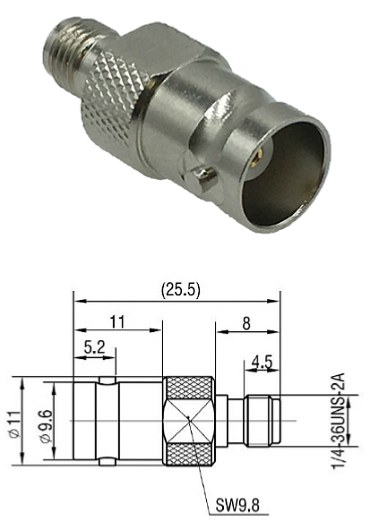

BNC Jack to SMA Jack Adaptor

(Code: 290-5031-070)
 Add to Enquiry List
BNC Jack to SMA Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance- 50 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1000V (rms)

Contact Resistance -Outer contact ≤3mΩ; Center Contact ≤2.5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - BNC: bayonet lock SMA:1/4-36UNS-2A

Durability - ≥ 500 cycles


Environmental Characteristics

Temperature Range: -55℃～+155℃
