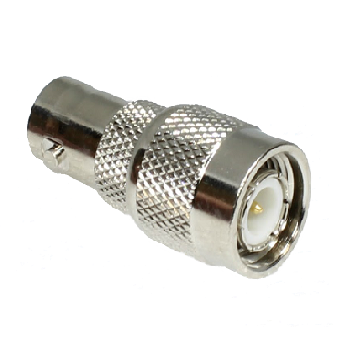

BNC Jack to TNC Plug Adaptor

Materials & Plating

Body - Brass, Nickel Plated

Contact - Phosphor Bronze, Gold Plated

Coupling Nut - Brass, Nickel Plated

Dielectric - Delrin

Pin - Phosphor Bronze, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Dielectric Withstanding Voltage - 1500V (RMS)

Max Frequency - 4 GHz

Working Voltage - 500 Volts (RMS)

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

RoHS Compliant - Yes

Temperature Range: - 55°C to +85°C
