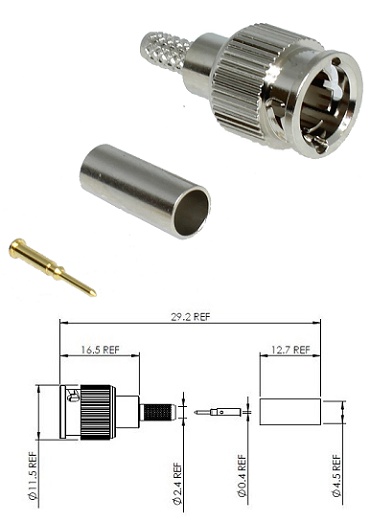

BNC Mini Crimp Plug BT3002

Materials & Plating
Body - Brass, Nickel Plated
Centre Contact - Brass, Gold Plated
Insulator - PTFE
Crimp Sleeve - Brass Nickel Plated
Gasket - Silicon Rubber
Outer Body - Brass, Nickel Plated

Electrical Specification
Impedance - 75 ohm
Frequency Range Max. - 0 - 2GHz
Dielectric Withstanding Voltage - 1000V(RMS) max
Insulation Resistance - ≥ 1000mΩ min

Mechanical Specification
Centre Contact Retention Axial Force - 10N
Cable Retention - 150N min
Mating - 500

Environmental Specification
Temperature Range: - 45°C to +85°C Deg C

Tooling
Center Contact - SQ 1.07 mm A/F
Crimp Sleeve - HEX 4.52 mm A/F

Stripping Dimensions
