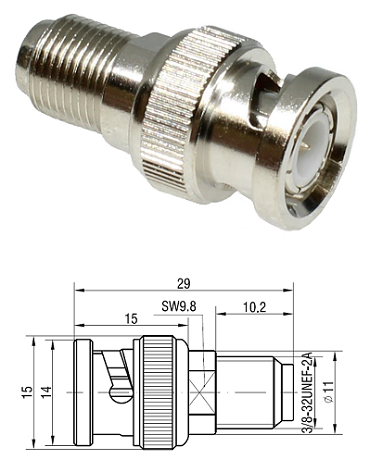

BNC Plug - F Jack

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Brass Phosphor, BronzePlated

Insulator - PTFE/ABS

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 1GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating -  F: 3/8-32UNEF-2A, BNC: bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
