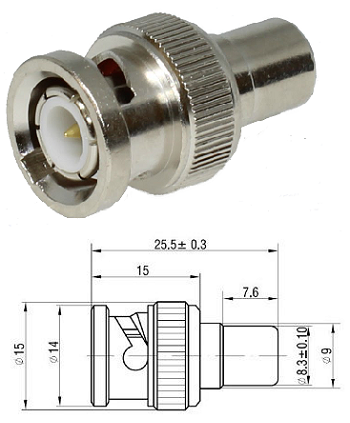

BNC Plug - RCA Female

(Code: 290-5085-070)
Add to Enquiry List
BNC Plug - RCA Female

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - ABS

Electrical Characteristics

Impedance - 50 ohmFrequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
