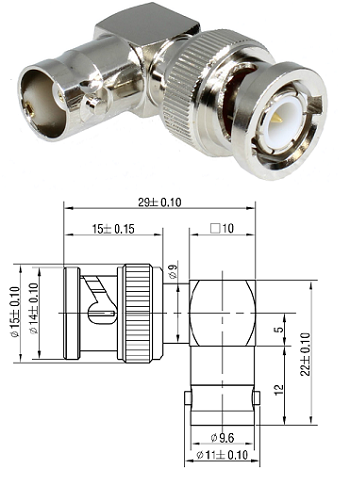

BNC Right-Angled Adaptor Jack/Plug 50 ohm

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Pin - Brass/Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Characteristic Impedance - 50 ohm

Frequency range - DC-2GHz

Dielectric Withstanding Voltage - 1500 (RMS)

Contact Resistance - Center  contact ≤1.5mΩ, Outer contact ≤1.mΩ

Insulation Resistance -  ≥5000MΩ​​​​​​​

Mechanical  Characteristics

Mating - Snap-on coupling

Durability - Mating cycle ≥500 cycle

Environmental Characteristic

Temperature Range: - 55°C to +155°C
