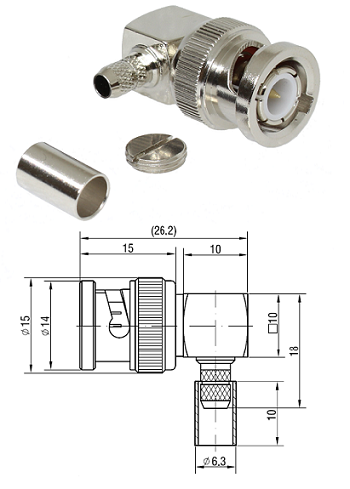

BNC Right-Angled Crimp Plug RG58

(Code: 211-1558-070)
 Add to Enquiry List
BNC Right-Angled Crimp Plug RG58

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1500V(RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - bayonet lock

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly

Pin: Solder

Outer: 5.41 mm hex
