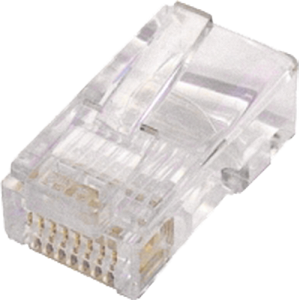

One piece RJ45 Crimp Plug for stranded Cat5e UTP cable. RJ45 is a type of connector commonly used for Ethernet networking. RJ45 connectors are used for connecting Ethernet cables to equipment in computer networking applications such as telecommunications or data equipment.
RJ45 cables can be terminated in two different ways as defined in TIA/EIA-568. One version is called T-568A and the other is T-568B.
Both wiring standards are listed below
Features
• Cat5e Crimp plug
• UTP
• RJ45
• Stranded
Specification
Material & Finish
Housing: Polycarbonate, Ul94v-0 or Ul94v-2.
Colour: Transparent or other color are available.
Contact Blade: Copper Alloy.
Conductor: Only for stranded cable , 24 AWG, 26 AWG.
(it can be used for the wire od from ø 0.96~ø1.02)
Gold Plating: 50u''
Electrical
UL Applications: 250 volts ac max., at 2 amps.
Dielectric Withstanding Voltage : 1000 volts ac.
Insulation Resistance: 100 m ohm
Termination: Resistance 20m ohm max after environmental testing.
Mechanical
Cable-to-Plug Tensile Strength: 20 pound min.
Durability: 200 mating cycles.
Environmental
Operation Temperature:-40°c ~ 70°c
|
T-568B - Most common wiring scheme
1 - White/Orange (Transmit +)
2 - Orange (Transmit -)
3 - White/Green (Receive +)
4 - Blue
5 - White/Blue
6 - Green (Receive -)
7 - White/Brown
8 - Brown |
T-568A
1 - White/Green (Receive +)
2 - Green (Receive -)
3 - White/Orange (Transmit +)
4 - Blue
5 - White/Blue
6 - Orange (Transmit -)
7 - White/Brown
8 - Brown |

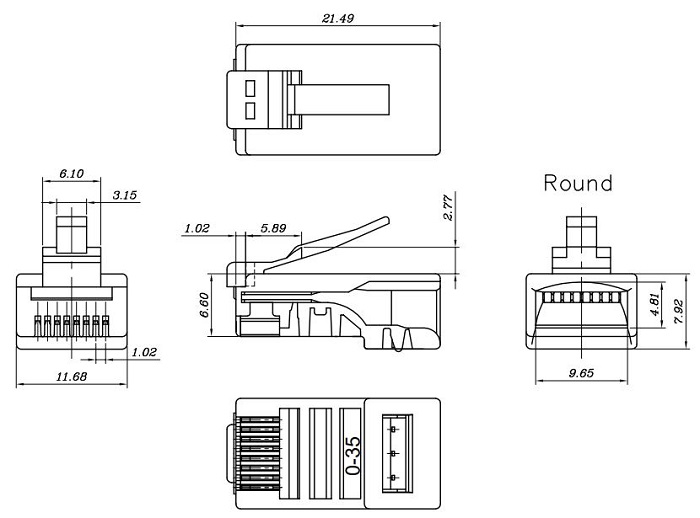

Drawing
