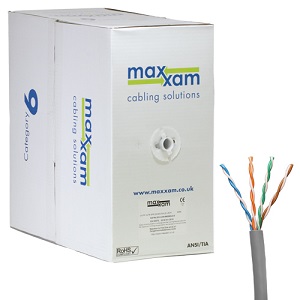

Cat6 U/UTP LSOH 23AWG Solid CPR Dca Cable 305m Reelex Box

(Code: 110-XX60003GY)
 Add to Enquiry List
Cat6 U/UTP LSOH 23AWG Solid CPR Dca Cable 305m Reelex Box
Standards compliant
Small Overall Diameter
Excellent Crosstalk Performance
305m Reelex Box
CPR Compliant versions to D Dca-s1a,d1,a1 standards

Features
• U/UTP Construction
• LSZH Grey Sheath
• 6.1mm Overall Diameter (Dca Version)
• Excellent NEXT and Return Loss Performance
• Metre marked from 305m to 1m for easy assessment of remaining cable Supplied in 305m ‘Reelex’ box for ease and speed of installation

Product Overview
The Maxxam Cat 6 U/UTP Cable offers Cat 6 standards compliant performance and supports high speed protocols up to 1G Ethernet. The cable is backwards compatible to all preceding cabling categories, ensuring support of all IP applications designed to run over them. The U/UTP construction has a plastic central separator that ensures excellent NEXT performance. The overall diameter of just 6.1mm enables tighter bend radii (just 24mm after installation) and facilitates the installation of more cables in a given size of containment. Supplied in 305m Reelex Box, multiple cables are easily installed without the need for axle stands and the 305m to 1m cable metre marking makes it easy to determine precisely how much cable remains in a box.

Technical Data
 Standards Compliant   ANSI/TIA-568-C.2, ISO/IEC 11801, BS EN 50173
 Overall Diameter  6.1mm (Dca Version)
 Sheath Material  LSZH, IEC60332-1
 Conductor Material  Bare Solid Copper, 23AWG
 Pulling Force  Max. 100N
 Temperature Range -
        Storage
        Installation
        Operation
 -40 to +70ºC
  0 to 50ºC
 -40 to 60ºC
 Mean Characteristic Impedance  100 Ohms ± 5 Ohms @ 100MHz
 Max. Delay Skew @ 100MHz   45 nsecs/100m
 Nominal Velocity of Propagation (NVP)  69%

Transmission Characteristics

 Freq.
MHz
  Attenuation
max .dB/100m
  RL
min. dBat20ºC
  NEXT
min. dB
  PS NEXT
min. dB
  ELFEXT
min. dB
 PSELFEXT
min. dB
  Prop. Delay
max.ns
 1  2.03  20.0  74.3  72.3  67.8  64.8
 570
 4  3.78  23.0  65.3  63.3  55.8  52.8
  552
 8  5.32  24.5  60.8  58.8  49.7  46.7
  547
 10  5.95  25.0  59.3  57.3  47.8  44.8
  545
 16  7.55  25.0  56.2  54.2   43.7  40.7
  543
 20  8.47  25.0  54.8  52.8  41.8  38.8
  542
 25  9.51  24.3  53.3  51.3  39.8  36.8
  541
 31.25  10.67  23.6  51.9  49.9   37.9  34.9
  540
 62.5  15.38  21.5  47.4  45.4  31.9  28.9
  539
 100  19.80  20.1  44.3  42.3  27.8  24.8  538
 200  28.98  18.0  39.8  36.3   21.8  18.8  537
 250  32.85  17.3  38.3  36.3   19.8  16.8  536


 Stock Code  Colour  Photo
110-XX60003GY  Grey
110-XX60003V
  Violet
 110-XX60003B  Blue
 110-XX60003BK  Black
 110-XX60003G  Green
 110-XX60003O  Orange
 110-XX60003R  Red
 110-XX60003WH  White
 110-XX60003Y  Yellow
