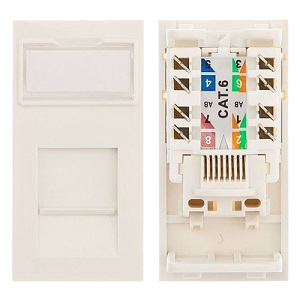

Cat6 UTP Low Profile Module 25mm x 50mm White

(Code: 802-72-3690)
Add to Enquiry List
Cat6 UTP Low Profile Module 25mm x 50mm White

The Cat6 UTP 25 x 50 Module offers independently verified Cat6 component compliant performance and supports high speed protocols up to 10G Ethernet. The module is backwards compatible to all preceding cabling categories, ensuring support of all IP applications designed to run over them.The low-profile design (20mm overall depth) enables enhanced cable management in back boxes and multiple cable entry options ensure optimum cable bend radii can be achieved.

There is a wire retention cap and there are multiple points for cable strain relief using the supplied cable tie.

The spring-loaded shutter prevents contamination of the RJ45 contacts when the module is not in use. The module can be terminated with a Krone style punch down tool and there is a protected labelling facility to provide clear outlet identification.


Features

• Cat6 UTP Low Profile Module

• 25mm x 50mm

• White

• Terminated with Krone style punch down tool

• Protect labelling facility


Specification
Use for 22-26 AWG Stranded & Solid Wire

Material
1. Modular & Door: ABS=PC, UL 94V-HB
2. Jack Contact materials & Finished
    2-1. Phosphor Bronze with 50-60 Micro-inch Nickel Plated
    2-2. Contact Area: Min. 3mm 50 Micro-inch Gold Plated
3. IDC Housing: Polycarbonate, UL 94V-2
4. IDC Terminal material & Finished
    4-1. Phosphor Bronze with 50-60 Micro-inch  Tin-Lead Plating over 50-60 Micro-inch Nickel Plated
    4-2. Krone tool only
    4-3. Use for 22-26 AWG stranded and solid wire
5. Cable Holder: PP, UL 94V-0,
6. Name Plate: Polycarbonate, Ul 94V-0 Transparence colour

Performance
a. The sticker colour codes combine two rings of T568A & T568B
b. Insertion Force: 900 gms for 8 contacts
c. Retention Strength: 7.7kg between Jack and Plug
d. Operating Temperature: -10ēC to 80ēC
e. Durability:
    e-1. Jack: 750 cycles Plug-Jack mating and unmating test, insertion cycles at 20 cycles/minute max. contact resistance
           test per 100 cycles
    e-2. IDC : Max 200 punching time.
f. The Cat6 performance is in compliance with ANSI/TIA/EIA 568 B.2-1 standard

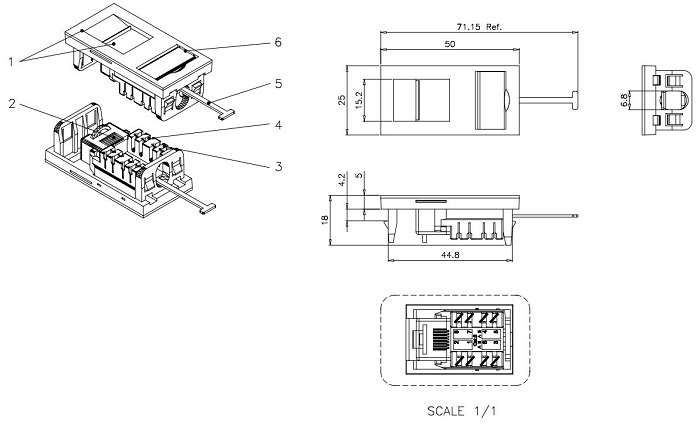

Drawing
