Category 5e & 6 SPEEDY RJ45 Plugs

(Code: PXSPDYx)
Add to Enquiry List

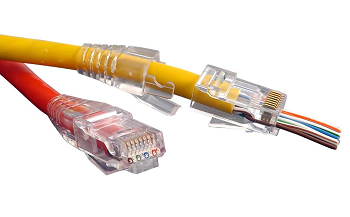

Category 5e & 6 SPEEDY RJ45 PlugsOur Speedy RJ45 plugs are designed to simplify twisted pair terminations by allowing the wire pairs to be easily inserted through the plug and out of the front. This allows the installer to easily check the wiring order before crimping the connector. Twist is maintained more easily enabling a better performing crimp. Waste is minimised and the plugs are suitable for either stranded or solid wires.

Features
 Each plug allows twisted pair wires to be inserted through the body and pulled out of the front to ensure the correct wiring order before crimping
 By pulling the cores into the plug, twists can easily be maintained up to the contacts, enabling fully rated category performance
 Contact blades are suitable for stranded or solid wire cores from 24‐26 AWG (0.51 – 0.40mm), with insulation up to 1.0mm O.D.
• Plugs available for both Category 5e and 6 twisted pair terminations
 Perfect solution for rapid termination
• Suitable for termination of solid or stranded UTP cables with sheath O.D. of 5.0 – 6.0mm
• Faults and failures minimised
• Simple one piece design
• Less cable scrap and wastage
• N.B. Must be used with suitable crimp tool (e.g., our code TRCSPDY or TRCSPDY3)

Specifications
• Housing material: Polycarbonate UL94V‐0
• Gold plating: 1.27μm/50μ”
• 3 prong contact for solid or stranded cores
• Housing colour: transparent
• Operating temperature: ‐10°C to 60°C

Packaging
Supplied in polybags of 10 then 100 then 500


 Stock Code  Description  Packaging
 PXSPDY5  Category 5e  10 Pack
 PXSPDY6  Category 6  10 Pack
 PXSPDY5
 Category 5e  100 Pack
 PXSPDY6
 Category 6  100 Pack
 PXSPDY5  Category 5e  500 Pack
 PXSPDY6
 Category 6  500 Pack
