CHS31 Series 3:1 Ratio Adhesive Lines (Cut Lengths 1.2 Metre)

(Code: CHS31(Cut Lengths))
Add to Enquiry List

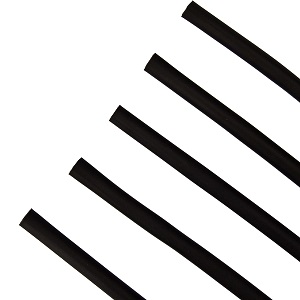

CHS31 Series 3:1 Ratio Adhesive Lines (Cut Lengths 1.2 Metre)



Our high quality 3:1 ratio heatshrink tubing 1.2M lengths are available in black and come as standard with adhesive lining. We keep thousands of meters of every size in stock at our UK distribution centre.


 Technical Specification
 Material  Polyolefin (With Hot Melt Adhesive)
 Standard  UL Approved
 Working Temp

-55C to +125C

 Shrink Temp  90C
 Dielectric Voltage Withstand  2500V, 60 Seconds, No Breakdown
 ROHS Compliant  Yes
 Zero Halogen  Yes
 Flammability  VW-1


CHS41 Series Heatshrink Tubing
Stock Code Size Before Shrink Size After Shrink Reel Length

CHS31-PC-3.2

3.2mm 1mm 1.2M

CHS31-PC-4.8

4.8mm 1.6mm 1.2M

CHS31-PC-6.4

6.4mm 2mm 1.2M
CHS31-PC-9.5
9.5mm 3mm 1.2M
CHS31-PC-12.7
12.7mm 4mm 1.2M
CHS31-PC-19.1
19.1mm 6mm 1.2mm
CHS31-PC-24.4
25.4mm 8.5mm 1.2M
