CHS31 is a dual wall adhesive lined heatshrink tubing manufactured from flame retardant cross-linked polyolefin. This tubing may be used in a wide variety of electrical applications and provides excellent waterproofing and moisture protection. Its high shrink ratio makes it ideal for sealing irregular shapes.
CHS31 Mini Reels is available in: Black
CHS31 Bulk Reels is available in: Black, Red & Clear
| Technical Specification |
| Material |
Polyolefin (With Hot Melt Adhesive) |
| Standard |
UL Approved |
| Working Temp |
-55ºC to +125ºC |
| Shrink Temp |
90ºC |
| Dielectric Voltage Withstand |
2500V, 60 Seconds, No Breakdown |
| ROHS Compliant |
Yes |
| Zero Halogen |
Yes |
| Flame Retardent |
VW-1 |
| 3:1 Ratio Heatshrink Mini Reels |
| Stock Code |
Size Before Shrink |
Size After Shrink |
Reel Length |
|
CHSMR31-3.2 |
3.2mm |
1mm |
10M |
|
CHSMR31-4.8
|
4.8mm |
1.6mm |
5M |
|
CHSMR31-6.4
|
6.4mm |
2mm |
5M |
CHSMR31-9.5
|
9.5mm |
3mm |
5M |
CHSMR31-12.7
|
12.7mm |
4mm |
5M |
CHSMR31-19.1
|
19.1mm |
6mm |
4M |
CHSMR31-25.4
|
25.4mm |
8.5mm |
3M |
| 3:1 Ratio Heatshrink Bulk Reels |
| Stock Code |
Size Before Shrink |
Size After Shrink |
Reel Length |
|
CHS31-3.2 COLOUR |
3mm |
1mm |
200M |
|
CHS31-4.8 COLOUR
|
4.8mm |
1.6mm |
100M |
|
CHS31-6.4 COLOUR
|
6.4mm |
2mm |
100M |
CHS31-9.5 COLOUR
|
9.5mm |
3mm |
50M |
CHS31-12.7 COLOUR
|
12.7mm |
4mm |
50M |
CHS31-19.1 COLOUR
|
19.1mm |
6mm |
50M |
CHS31-25.4 COLOUR
|
25.4mm |
8.5mm |
20M |
CHS31-31.8 COLOUR
|
38.1mm |
12.7mm |
20M |
 |
 |

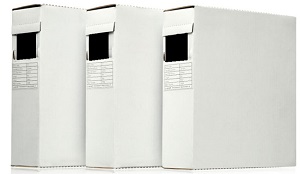

| CHS31 Heatshrink Mini Reels |

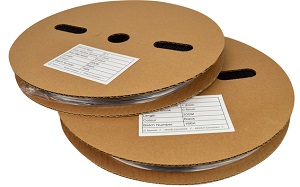

CHS31 Heatshrink Bulk Reels |
|
