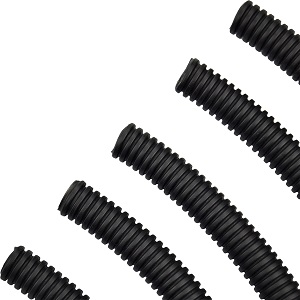

Our corrugated conduit is flexible and flame retardant. It has excellent electrical and physical
properties, including excellent acid fastness and corrosion resistance.
Colours Available: Black
| Technical Specification |
| Material |
Polypropylene |
| Standard |
UL Approved |
| Working Temp |
-40ºC to +135ºC |
| ROHS Compliant |
Yes |
| Flame Retardant |
Yes
|
| Conduit |
| Stock Code |
ID |
OD |
Thickness |
Reel Size |
|
CCC6.5BLACK
|
6.5mm
|
9mm |
0.25mm |
100M |
|
CCC9.0BLACK
|
9.0mm
|
13mm |
0.25mm |
100M |
|
CCC11BLACK
|
11mm
|
15mm
|
0.25mm |
100M |
| CCC13BLACK |
13mm |
17mm |
0.27mm |
100M |
CCC16BLACK
|
16mm
|
10mm
|
0.27mm |
50M |
CCC19BLACK
|
19mm
|
23mm
|
0.27mm |
50M |
CCC20BLACK
|
20mm
|
25mm
|
0.30mm |
25M
|
CCC25BLACK
|
25mm
|
30mm
|
0.30mm |
25M
|
CCC28BLACK
|
28mm |
34mm |
0.35mm |
25M
|
CCC30BLACK
|
30mm |
36mm |
0.35mm |
25M
|
CCC32BLACK
|
32mm |
38mm |
0.35mm |
25M |
| CCC35BLACK |
35mm
|
40mm |
0.35mm |
25M |
| Split Conduit |
| Stock Code |
ID |
OD |
Thickness |
Reel Size |
|
CSC6.5BLACK
|
6.5mm
|
9mm |
0.25mm |
100M |
|
CSC9.0BLACK
|
9.0mm
|
13mm |
0.25mm |
100M |
|
CSC11BLACK
|
11mm
|
15mm
|
0.25mm |
100M |
| CSC13BLACK |
13mm |
17mm |
0.27mm |
100M |
CSC16BLACK
|
16mm
|
10mm
|
0.27mm |
50M |
CSC19BLACK
|
19mm
|
23mm
|
0.27mm |
50M |
CSC20BLACK
|
20mm
|
25mm
|
0.30mm |
25M
|
CSC25BLACK
|
25mm
|
30mm
|
0.30mm |
25M
|
CSC28BLACK
|
28mm |
34mm |
0.35mm |
25M
|
CSC30BLACK
|
30mm |
36mm |
0.35mm |
25M
|
CSC32BLACK
|
32mm |
38mm |
0.35mm |
25M |
| CSC35BLACK |
35mm
|
40mm |
0.35mm |
25M |
|
