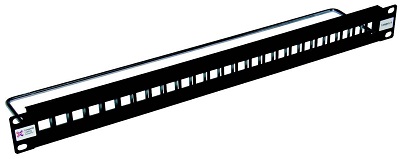

Connectix Unloaded 24 Way 1U Unshielded Keystone Panel

(Code: 009-010-010-05)
Add to Enquiry List
Connectix Unloaded 24 Way 1U Unshielded Keystone Panel

Features & Benefits

24 Way High Density

Category 6 performance

Suitable for Connectix Express assemblies

Suitable for tool-less Keystone Modules

Integrated cable management bar


Width:                        483 mm (19")

Depth:                        155 mm

Height:                       44.45 mm

Material:                     Mild steel

Finish:                        Black paint-fine textured

The Connectix 24 Way Keystone Panel offers ultra-High Density and the capability for Category 6 data transmission performance levels. The panel is supplied unloaded and accepts Category 6 performance Keystone Modules which are simply clicked into position. Patch panel installation and termination time can be greatly reduced when Connectix Tool-less Keystone Modules are used in the panel, making for a snap-to-fit, quick and easy termination. To further increase on-site installation efficiency, Connectix Express Pre-Terminated and Pre-Tested Modules can be used.
