 Application

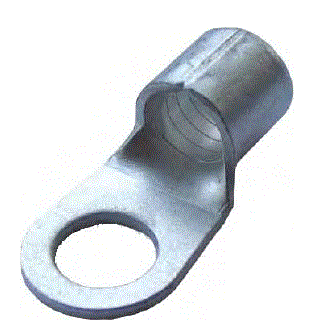

Un-insulated heavy duty terminals suitable for power cables up to 1000 volts
Material
Manufactured from seamless copper tube to BS EN 12449:1999
Finish
Electro Tin Plated to BS 1872:1974
Details
All terminals are manufactured from 99.5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped.
Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor.
Internal barrel diameters suit standard cables as defined in BS 6360
All terminals are identified on the palm with the cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies
| Stock Code |
Cond. Size (mm˛) |
Stud Hole (mm) |
|
Stock Code |
Cond. Size (mm˛) |
Stud Hole (mm |
|
410-10-5ST
410-10-6ST
410-10-8ST
410-10-10ST
410-10-12ST
410-10-14ST |
10.0 |
5.3
6.5
8.4
10.5
13.0
15.0 |
|
410-50-6ST
410-50-8ST
410-50-10ST
410-50-12ST
410-50-16SR |
50.0 |
|
|
410-16-5ST
410-16-6ST
410-16-8ST
410-16-10ST
410-16-12ST
410-16-16ST |
16.0 |
5.3
6.5
8.4
10.5
13.0
15.0 |
|
410-70-6ST
410-70-8ST
410-70-10ST
410-70-12ST
410-70-16ST |
70.0
|
|
|
410-25-6ST
410-25-8ST
410-25-10ST
410-25-12ST
410-25-14ST
410-25-16ST |
25.0 |
6.5
8.4
10.5
13.0
15.0
17.0 |
|
410-95-8ST
410-95-10ST
410-95-12ST
410-95-16ST |
95.0
|
|
410-35-6ST
410-35-8ST
410-35-10ST
410-35-12ST
410-35-16ST |
35.0
|
|
|
|
|
|
|
