D Type Female Connectors / Machined Contacts

(Code: 310-DMXXSS)
 Add to Enquiry List
D Type Female Connectors / Machined Contacts
 Technical Specification
 Insulator  Glass filled Polyester, Black UL94 V-0
 Shell  Stamped Steel , Tin Plated
 Contact Pins  Copper Alloy
 Stamped and Formed Pins  Glass 1, 500 inserts min (DB)
 Contact Plating  Selective Gold over Nickel
 Contact Current rating  5 Amps max
 Contact Resistance  25 ohm max
 Operating Temperature  -56°C to +105°C
 Withstanding Voltage  1000V AC for 1 minute
 Insulator Resistnace  1000M ohm min


 Stock Code  Size  A  B  C  D
 310-DM09SS  9-way  16,33  24,99  30,81 19,28
 310-DM15SS  15-way  24,66  33,32  39,14  27,51
 310-DM25SS  25-way  38,36  47,04  53,04  41,30
 310-DM37SS  37-way  54,84  63,50  69,32  57,71

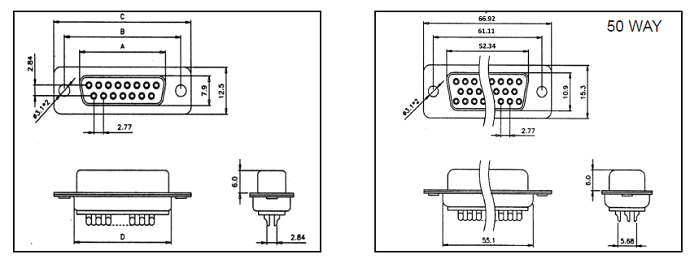

 310-DM50SS  see drawing below
