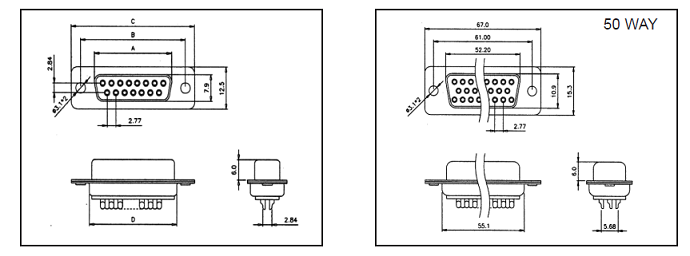

D Type Female Connectors / Stamped & Formed

(Code: 310-DBXXSS)

Technical Specification
Insulator	Glass filled Polyester, Black UL94 V-0
Shell	Stamped Steel , Tin Plated
Contact Pins	Copper Alloy
Stamped and Formed Pins	Glass 3, 100 inserts min (DB)
Contact Plating	Selective Gold over Nickel
Contact Current rating	2 Amps max
Contact Resistance	10 ohm max
Operating Temperature	-55°C to +105°C
Withstanding Voltage	1000V AC for 1 minute
Insulator Resistnace	1000M ohm min
