D Type Male Connectors / Stamped & Formed

(Code: 310-DBXXSP)
 Add to Enquiry List
D Type Male Connectors / Stamped & Formed
 Technical Specification
 Insulator  Glass filled Polyester, Black UL94 V-0
 Shell  Stamped Steel , Tin Plated
 Contact Pins  Copper Alloy
 Stamped and Formed Pins  Glass 3, 100 inserts min (DB)
 Contact Plating  Selective Gold over Nickel
 Contact Current rating  2 Amps max
 Contact Resistance  10 ohm max
 Operating Temperature  -55°C to +105°C
 Withstanding Voltage  1000V AC for 1 minute
 Insulator Resistnace  1000M ohm min


 Stock Code  Size  A  B  C  D
 310-DB09SP  9-way  16,92  25,00  30,8  19,2
 310-DB15SP  15-way  25,25  33,30  39,2  27,7
 310-DB25SP  25-way  38,96  47,10  53,1  41,1
 310-DB37SP  37-way  55,42  63,50  69,4  57,3

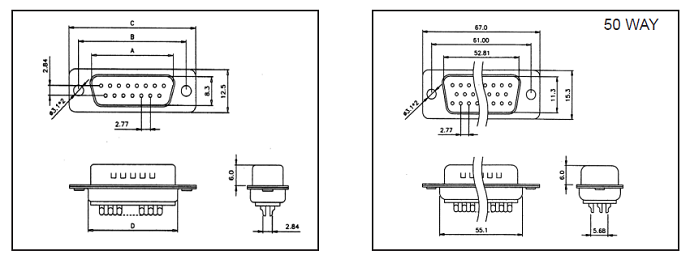

 310-DB50SP  see drawing below
