DIN 741 Malleable Wire Rope Clips

(Code: DIN741)
Add to Enquiry List
DIN 741 Malleable Wire Rope Clips

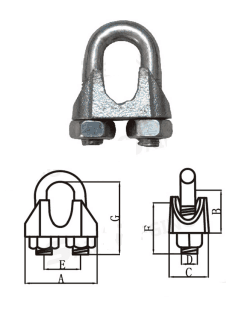

 Size(mm) Dimensions (mm)
 -  A  B  C  D  E  F  G
3 21 10 10 4 9 12 16.6
5 23  10 11 5 11 13 19.65
6.5  26 11 12 5 13 15  23.65
8 30 15 14 6 16 19 28.85
10 34  17 18 8 19 22 35
11 36 18 19 8 20 22 37
13 40 21 23 10 24 30 46.24
14  44 22 23 10 25 30 46.24
16 50 26 26 12 29 33 52.5
19  54 30 29 12 32 38 64.5
22  61 34 33 14 37 44 72.5
26 65 37 35 14 41 45 82.5
30 74 43 37 16 18 50 95.6
34  60 50 42 16 52 55 105.6
40  88 55 45  16 58 60 125.6
