Diplexer 410-415 MHz /420-425MHz

(Code: MDN-101402-DF)
Add to Enquiry List

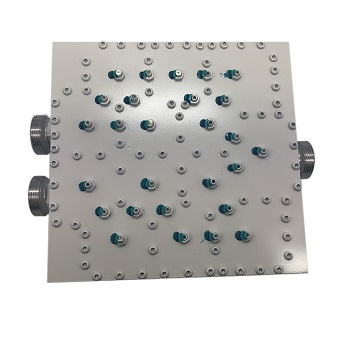

Diplexer 410-415 MHz /420-425MHz
Main Features

 • Compact, low weight

 • High reliability

 • Simple installation

Electrical Specifications

Frequency: RX: 410-415MHz / TX: 420-425 MHz

Return loss (dB): ≤-20

Insertion loss (dB): ≤2.0

Isolation (dB): 80 minimum

Power handling: 80W CW

Impedance (Nominal): 50 ohm



Environmental Specifications

Operating temperature range: 0°C to +55°C

Applications: Indoor

Relative humidity: 5% - 95%

Storage temperature range: 0°C to +85°C


Mechanical Specifications

Connectors type: DIN-F

Weight (kg): 2.0

Outer Dimension(mm): 165*159*56

Packing: 1 Piece in box

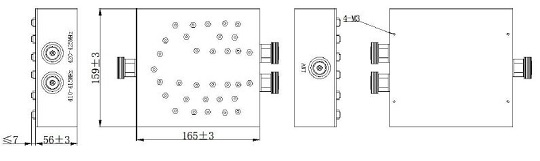

Outline drawing:
